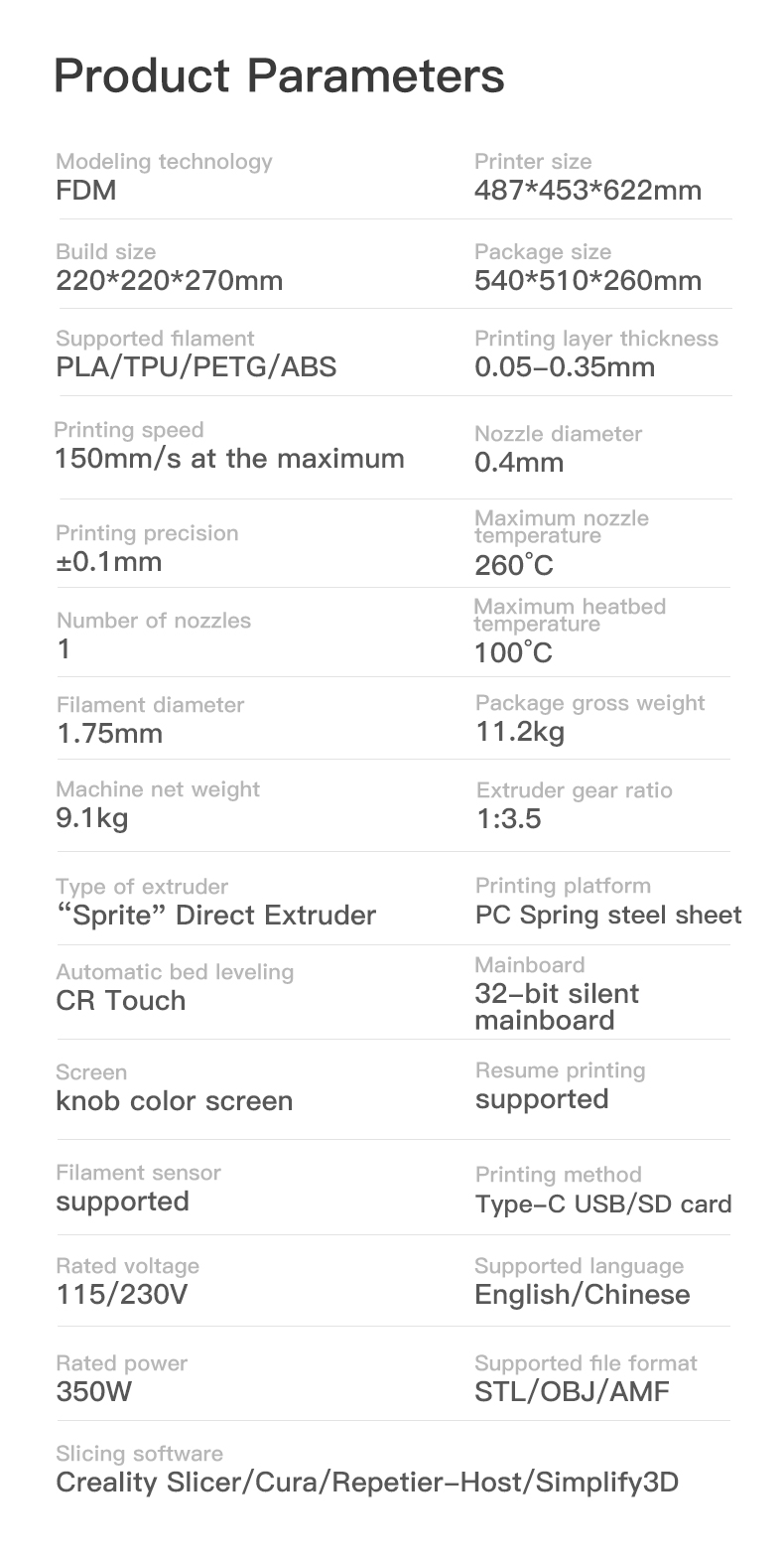

Technology | Fused deposition modeling (FDM) |
Printing space dimensions | Length 220 mm × width 220 mm × 270 mm |

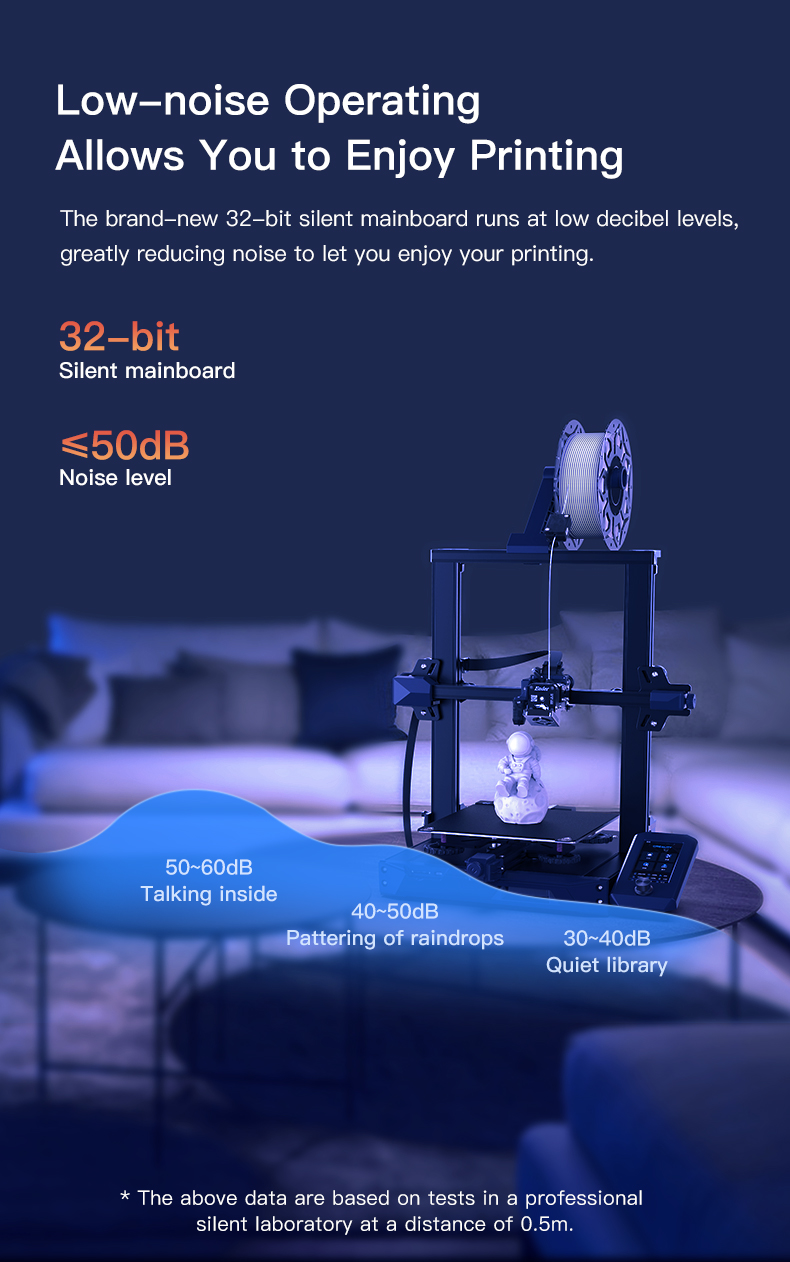

Noise intensity | 50dB |
Number of nozzles | 1 |
Nozzle diameter | 0.4 mm |
Nozzle temperature | Up to 260 degree Celsius |
Printing speed | Up to 150 mm/s |
Layer height | From 0.05 mm up to 0.3 mm |

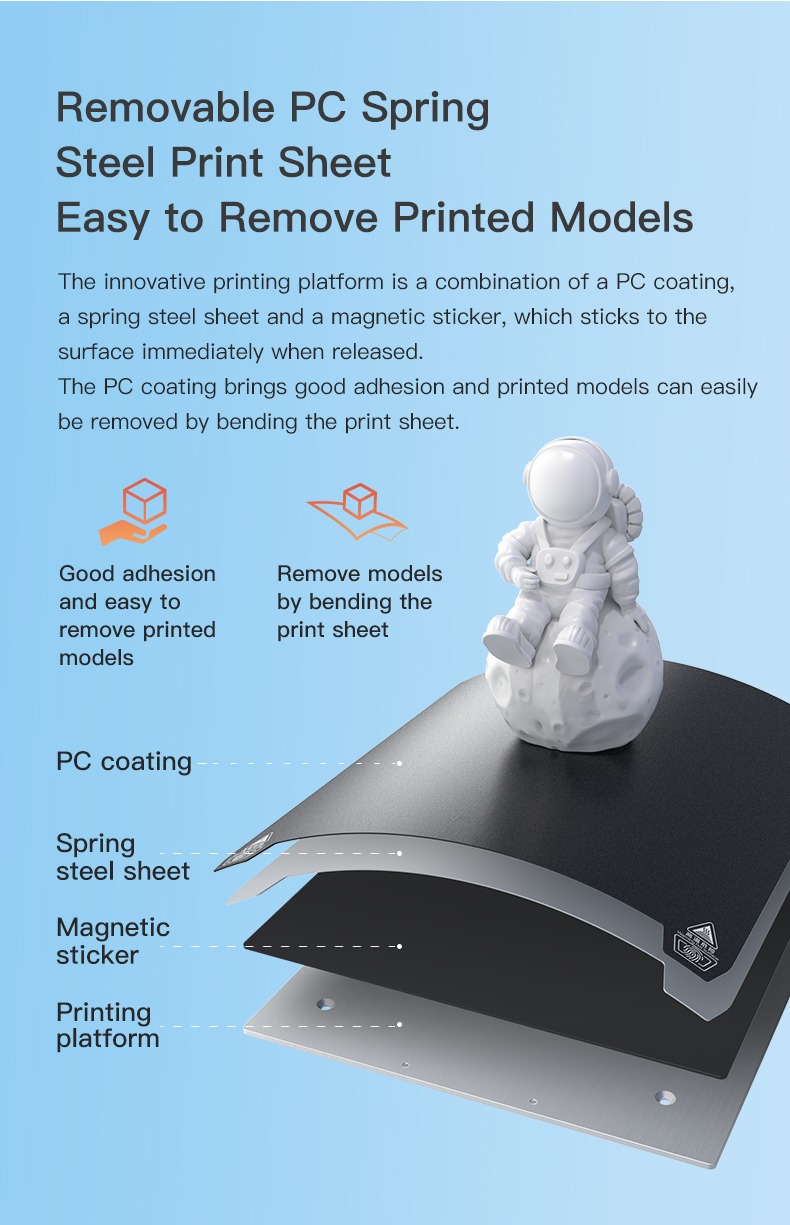

Printing surface type | Flexible Steel Plate with BuildTak |
Heat bed temperature | Up to 100 degree Celsius |

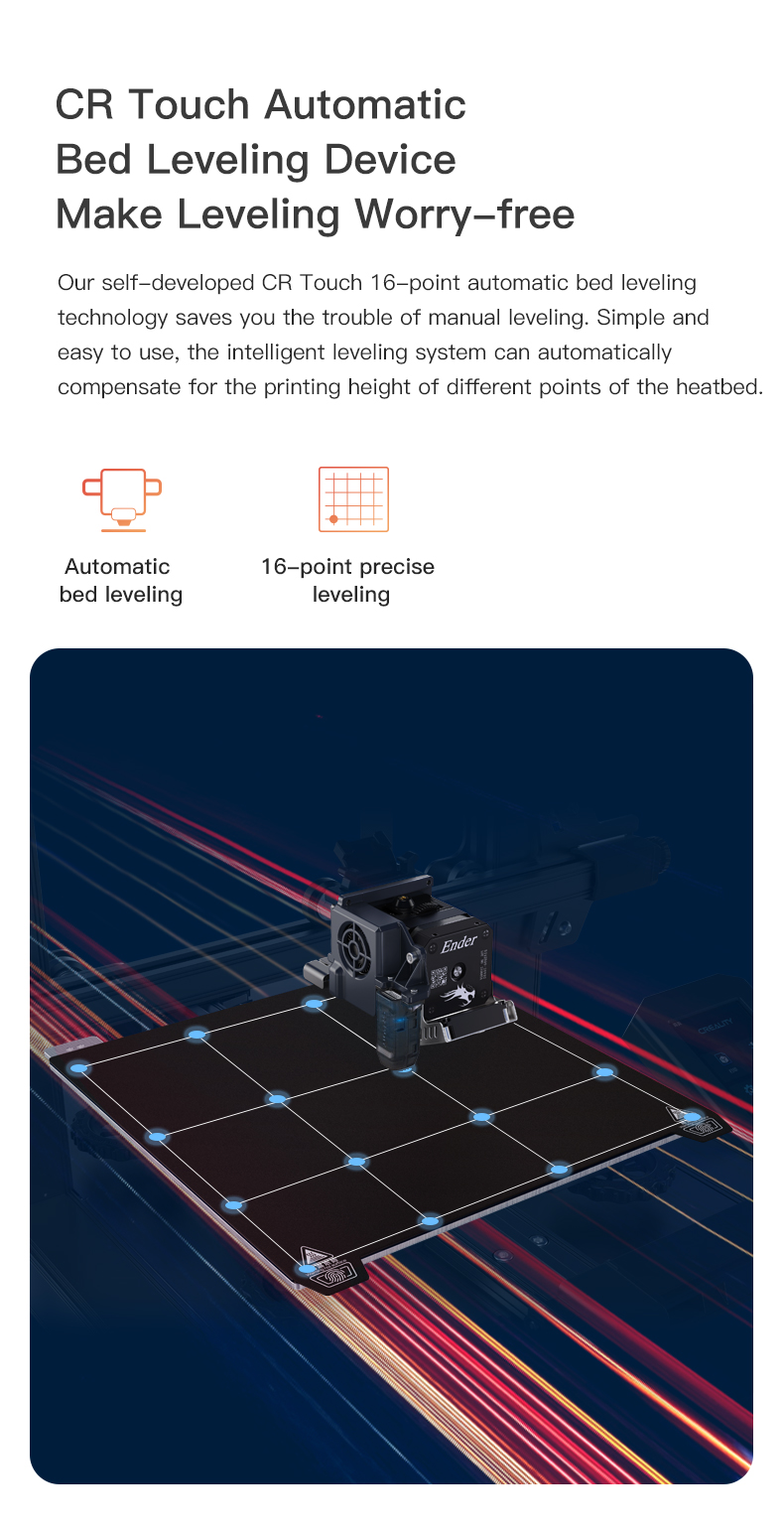

Printing surface calibration methods | Auto Leveling (CR touch) , Manual |
Printing accuracy | ± 0.1 mm |

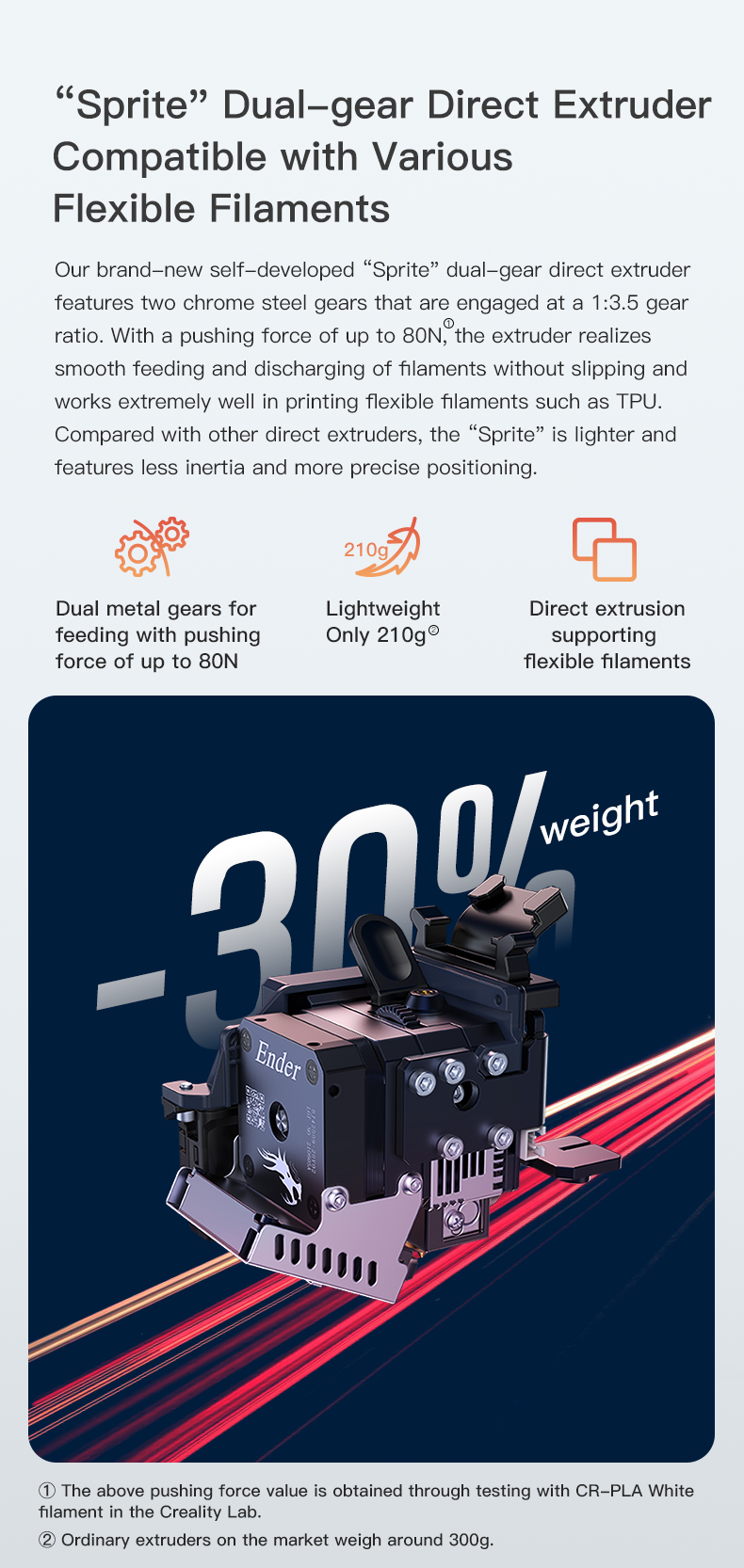

Feeder system | “Sprite Extruder” Direct Extruder |
Filament Diameter | 1.75 mm |

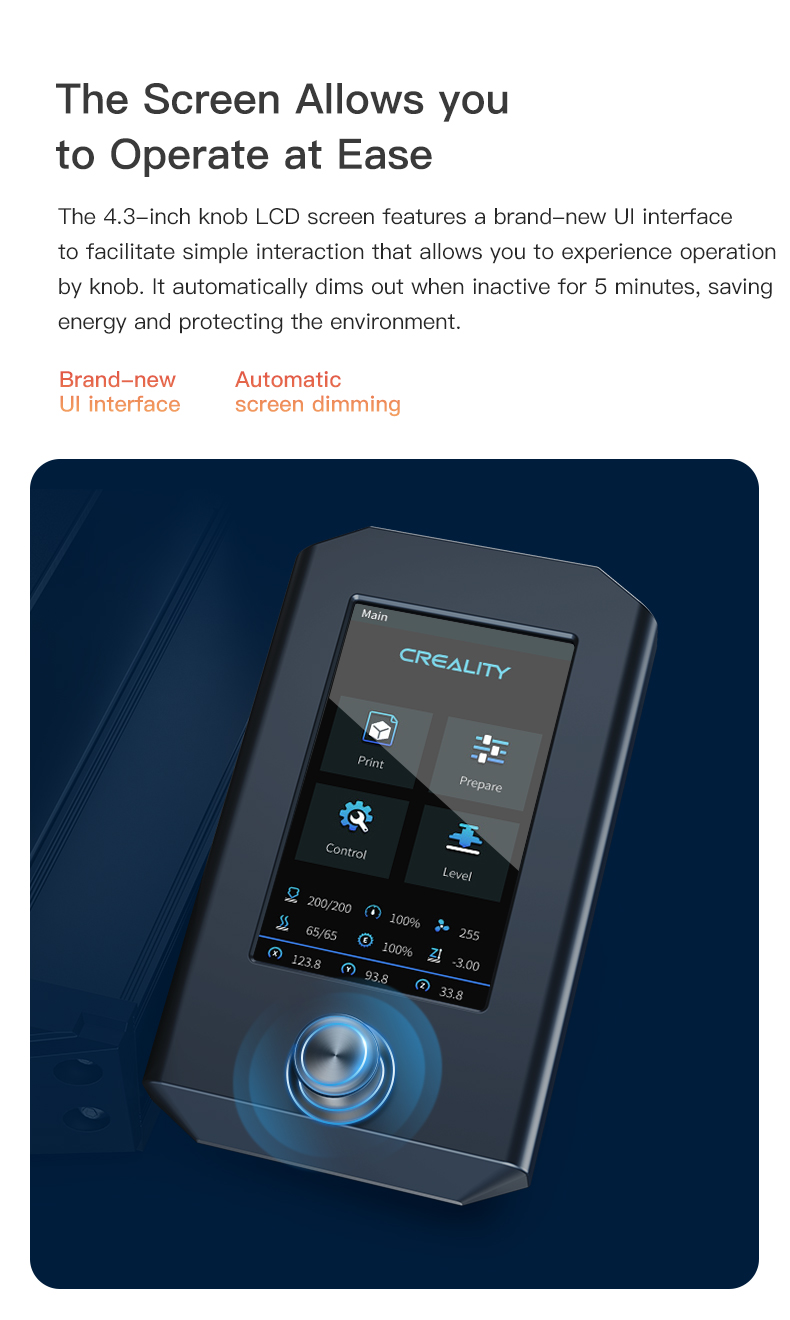

User interface type | Screen with rotating knob |
Direct communication port | USB Type C |
Memory card port | SD Card |
Supported operating systems for direct commutation | Windows, MacOS, Linux |
Methods of sending print instructions | Direct connection or using memory card |
Power input | 115-230 V, 50-60 Hz, ≤ 5.9 A |
Maximum power | 350 W |
Power connector | IEC C13 |
Printer dimensions | Length 487 mm × width 453 mm × 622 mm |
Operating space dimensions | Length 600 mm × width 600 mm × 700 mm |
Net mass | 9.1 Kg |
Package size | 540 mm × 510 mm × 260 mm |
Gross mass | 11.2 Kg |
